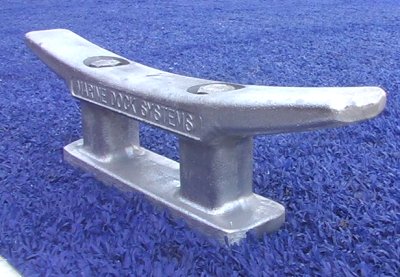

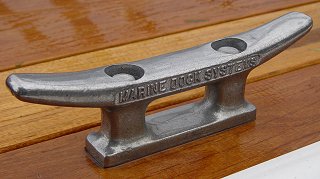

CLEATS
Cleats are cast in Marine Grade Aluminium. Marine Dock Systems supplies the standard size is 300mm.
Floats
Enquiry



a4-1515 - 300mm Cleat installation tiber frame
a4-1908 - 300mm Cleat installation alloy frame
Technical Information and Part #'s for Cleat sizes

Cleat Part No. A B C D E F - BOLT WEIGHT
CLEAT-1386 300mm 165mm 40mm 90mm 105mm 1/2" or 12mm 0.82kg

Bolts required

Carpet/plate Decking
Tap thread 1/2 inch x 3"1/2
Bolt 1/2 inch x 4"

22mm Mesh Decking
Tap thread 1/2 inch x 4"
Bolt 1/2 inch x 4"1/2

Timber decking
Tap thread 1/2 inch x 4"1/2
Bolt 1/2 inch x 5"

Installation Timber Frame

a4-1515 - 300mm Cleat installation tiber frame

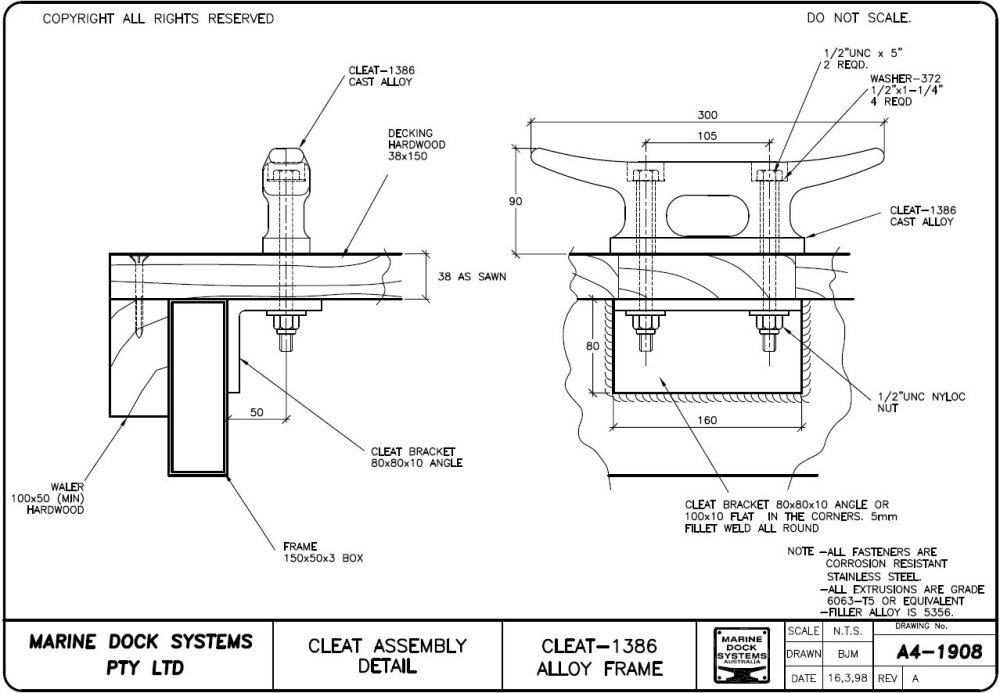

Installation Aluminum Frame

a4-1908 - 300mm Cleat installation alloy frame


Deck and Pile Bollards
Bollards sometimes have to be customised for easy and optimum docking,

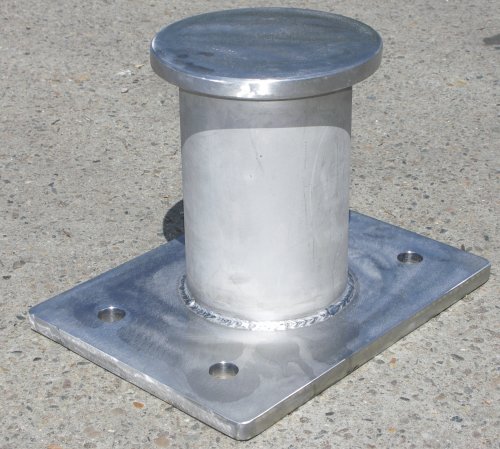

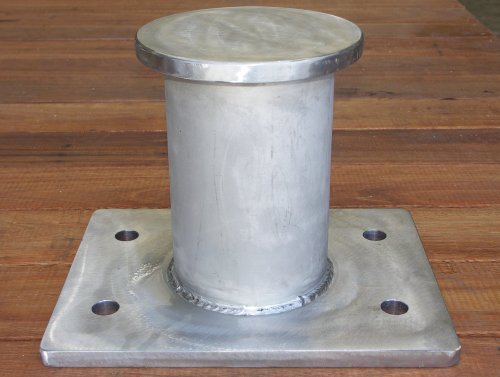

Custom Bollard 220mm

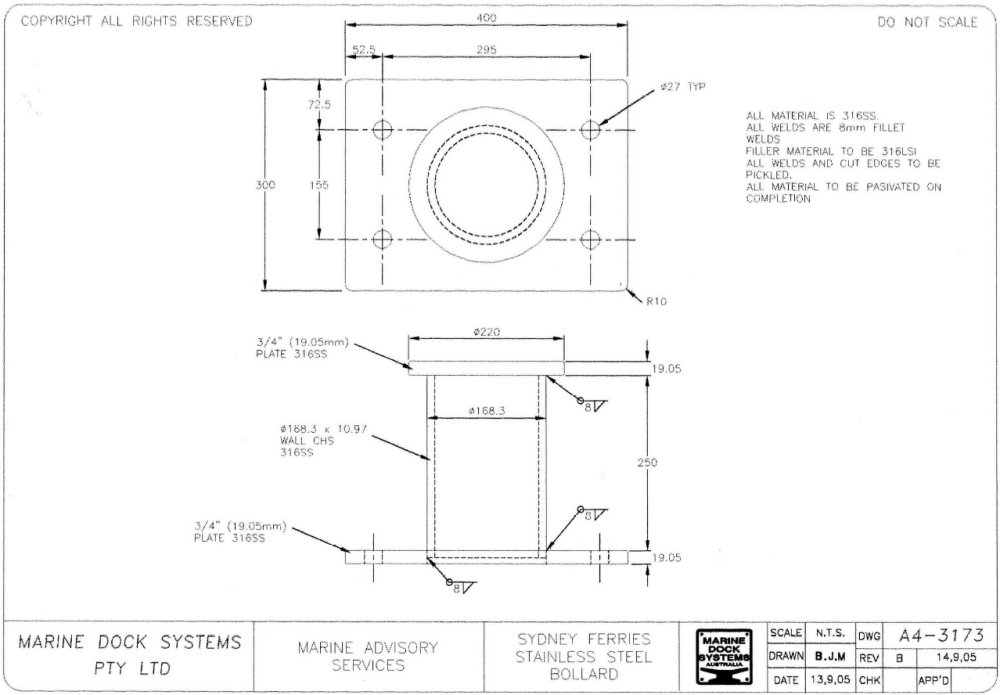

A4-3173 - Stainless Steel Bollard 220mm Sydney Ferries

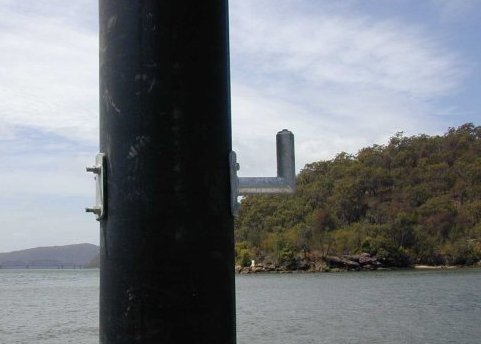

Custom Pile Bollard

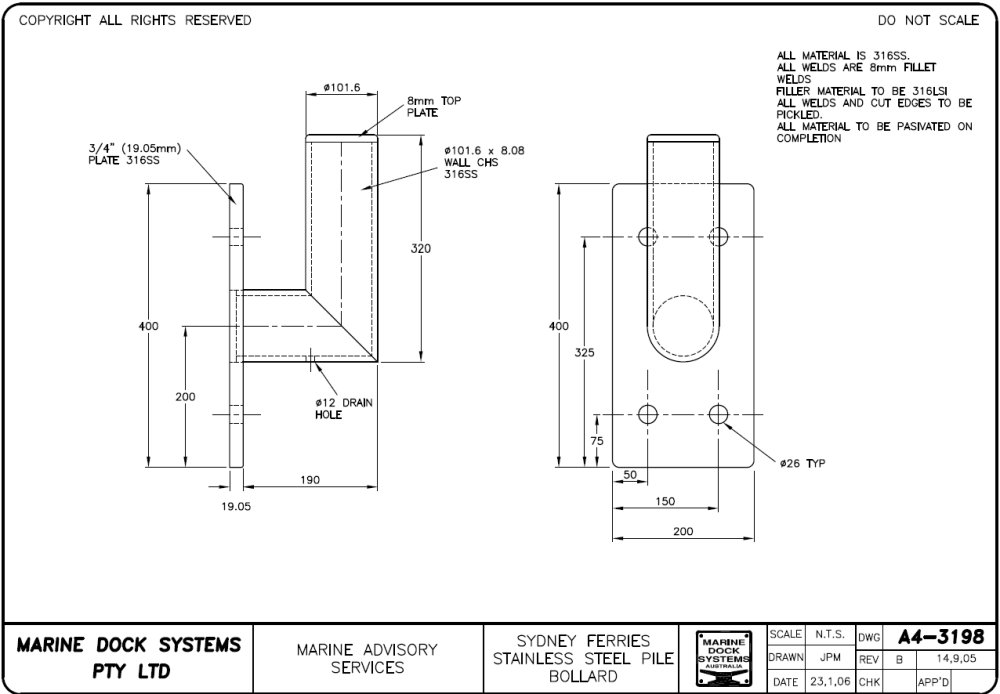

A4-3198 - Pile Bollard/td>
