Build Your Own Floating Pontoon Kit Build Your Own Floating Pontoon,
Marina Walkway or Access Ramp


Marine Dock Systems has been supplying DIY floating pontoon kits, pontoon plans, marina walkway kits, floating dock components and pontoon flotation systems throughout Australia since 1978.

Whether you are building a residential pontoon, floating dock, marina finger, floating walkway, boat access ramp or a complete marina development, Marine Dock Systems can supply everything you need to complete your project.

Our proven pontoon kits are available in a variety of options including:

• Floats Only
• Floats and Hardware Kits
• Floats, Hardware and Timber Packages
• Complete Ready-to-Assemble Pontoon Kits
• Fully Built

Each kit is supplied with detailed technical drawings, proven construction methods and access to experienced staff who can assist throughout the build process.

Marine Dock Systems flotation modules are used in thousands of pontoon installations across Australia including private waterfront pontoons, marinas, yacht clubs, councils, commercial developments, oyster farms and industrial marine projects.

Most DIY pontoon projects can be completed with basic tools, common construction skills and a spare weekend. If your required pontoon size is not listed below, simply contact us. We have hundreds of proven pontoon designs and can supply custom pontoon kits, marina fingers, floating walkways, gangways and access ramps to suit virtually any application.

Why Choose a Marine Dock Systems DIY Pontoon Kit?
• Australian Made Flotation Systems
• Proven Designs Since 1978
• Detailed Construction Drawings Included
• Residential and Commercial Applications
• Marine Grade Hardware Available
• Technical Support Available
• Custom Sizes Available
• Suitable for Rivers, Lakes, Canals and Coastal Waters
• Expandable and Modular Designs

Residential pontoon 3.7 mtr x 2.46 mtr
Part # PONTOON-330
Including 4 x 650 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Available in stages
Floats only
Floats and Hardware
Floats, Hardware and Timber
Fully Built
a4-330 Residential pontoon 3.7 mtr x 2.46 mtr

Residential Pontoon 4.5 mtr x 2.55 mtr
Part # PONTOON-2719
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
Available in stages
Floats only
Floats and Hardware
Floats, Hardware and Timber
Fully Built
a4-2719 Residential pontoon 3.7 mtr x 2.46 mtr

Marina Walkway 6mtr x 2mtr
Part # PONTOON-311
Including 4 x 1200 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 2 sides.
Available in stages
Floats only
Floats and Hardware
Floats, Hardware and Timber
Fully Built
Drawing a4-0311
a4-0311 Timber walkway 6mtr x 2mtr
a4-0400 Comtor conecting unit

Marina Finger 5mtr x 1mtr
Part # PONTOON-840
Including 2 x 900 Litre floatation modules F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. 4 x 300mm cleats and large buffer 3 sides.
a4-0840 Marina Finger 5mtr x 1mtr
a4-1852 9.6mtr x 1.3 mtr - Alloy frame

Standard Domestic Ramp 6 mtr x 1.2 mtr
Part # RAMP-0527
F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. Including aluminium / stainless hinges.

Click here for more info and material list

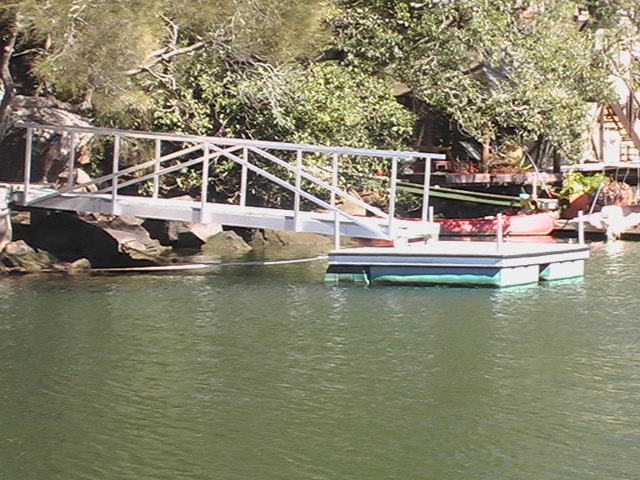

We recommend that you use our drawings to build your own pontoon but of course you don't have to. We have supplied floats to people to build their own pontoon since 1980. Here are just some of the pontoons people have built themselves. If the pontoon you would like to build is not listed in the above standards, please let us know as we probably have a drawing for the size you would like. We can supply a kit for any size pontoon.
pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557

Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links
pontoons, marinas, jetties, docks, barges


Frequently Asked Questions - Build Your Own Floating Pontoon Kits

1. Can I build my own pontoon?
Yes. Marine Dock Systems supplies pontoon kits, drawings, floats and hardware packages that allow customers to build their own floating pontoon, marina walkway or dock.

2. What is included in a pontoon kit?
Depending on your requirements, kits can include flotation modules, hardware, framing details, decking materials, drawings and assembly instructions.

3. Do I need special skills to build a pontoon?
Most DIY pontoon projects can be completed by people with basic construction skills, common tools and the ability to follow drawings and instructions.

4. Can I purchase floats only?
Yes. Marine Dock Systems can supply flotation modules only if you wish to source your own timber and hardware.

5. Can I buy floats and hardware without timber?
Yes. Packages are available with floats and hardware only, allowing customers to source timber locally.

6. Are complete kits available?
Yes. Full pontoon kits can be supplied with floats, hardware and timber ready for assembly.

7. Can Marine Dock Systems build the pontoon for me?
Yes. Fully assembled pontoons and marina structures are available if you prefer a completed solution.

8. What pontoon sizes are available?
A range of standard residential pontoons, marina fingers, walkways and ramps are available, with custom sizes also offered.

9. Can I build a custom-size pontoon?
Yes. Marine Dock Systems can supply drawings, floats and components for custom pontoon sizes and applications.

10. What timber is used in the kits?
Many kits utilise F27 kiln-dried hardwood framing and hardwood decking for strength and durability.

11. What type of flotation is used?
The kits utilise durable polyethylene flotation modules designed specifically for marine applications.

12. Are the floats foam filled?
Float options vary depending on the project requirements and selected flotation modules.

13. Can I build a marina walkway?
Yes. Marina walkways and floating access structures are available as DIY kits with drawings and component packages.

14. Can I build a marina finger?
Yes. Marina finger pontoons can be supplied as complete kits including flotation modules, hardware and drawings.

15. Are access ramp kits available?
Yes. Floating pontoon access ramps are available with timber framing, decking and stainless-steel hardware options.

16. Are drawings included?
Yes. Detailed technical drawings are supplied to assist with assembly and installation.

17. How long does it take to build a pontoon?
Many customers can complete a standard pontoon kit over a weekend depending on size, experience and available assistance.

18. Can the pontoon kits be expanded later?
Yes. Many pontoon systems can be modified or expanded as requirements change.

19. Are the pontoon kits suitable for residential and commercial projects?
Yes. Marine Dock Systems supplies solutions ranging from backyard pontoons through to commercial marina developments.

20. Why choose Marine Dock Systems pontoon kits?
With over 45 years of marine industry experience, Marine Dock Systems provides proven designs, quality flotation systems, technical support and Australian-made marine products trusted throughout Australia.
