Pontoon - 2719
Residential Pontoon 4.5 mtr x 2.55 mtr
4 x 1200 Litre floatation modules
F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware

Decking long length direction

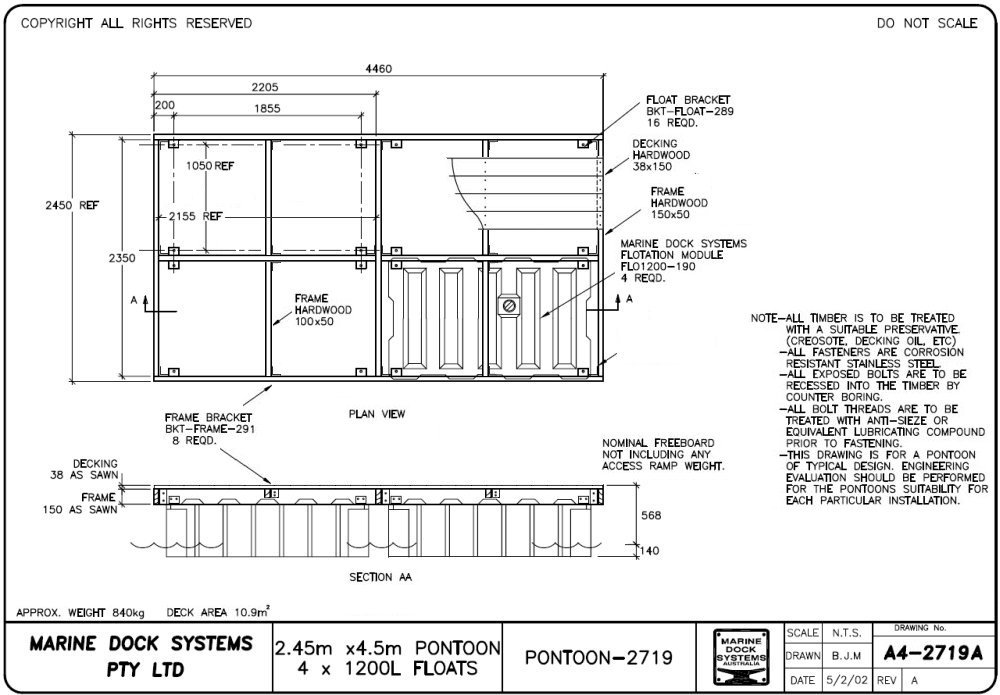

A4-2719A Residential pontoon 4.5 mtr x 2.55 mtr
Decking accross direction
A4-2719 Residential pontoon 4.5 mtr x 2.55 mtr

Associated drawings
A4-0190 - 1200 Litre float
Drawing A4-0717 Cleat-361 Assembly detail
Drawing A4-0730 Float and Deck Assembly detail
Drawing A4-0732 Float and Deck Assembly detail #2
Drawing A4-0739 Frame Assembly detail
Drawing A4-0826 Ramp hinge support detail


4 x 1200 litre floats with frame.

   Build your own pontoon and save on labour and transport. This pontoon has decking across the deck, kit comes with extra brackets to support timber length ways. Extra cleats and / or buffer available to meet your needs. Also available fully built in our factory at Riverstone Sydney or Sunshine Coast Queensland..

Pontoon Kits Email us for price for pontoon kit prices to make your own quality pontoon.



Photo - 1990 by Brett Mackay. MDS - Marine Dock Systems
<
font color="#000000" size="2">


Kit comes with with Buffer on 3 sides. Including 4 cleats.
Residential Pontoon 4.5 mtr x 2.55 mtr
Part # PONTOON-2719
Including 4 x 1200 Litre floatation modules
F27 kiln dried 150 x 50 Hardwood frame
F27 kiln dried 35mm Hardwooddecking
All stainless steel and aluminium hardware.
4 x 300mm cleats and large buffer 3 sides.

Decking long length direction
A4-2719A Residential pontoon 4.5 mtr x 2.55 mtr
Decking accross direction
A4-2719 Residential pontoon 4.5 mtr x 2.55 mtr
Material list - Decking long length direction

4 x 1200 Litre floats - Part # FLO1200
16 x Float brackets - Part # BKT-FLOAT
16 x Aluminium float bracket washer - Part # WASHER-1041
10 x Aluminium Frame Bracket 80x80 angle 140mm - Part # BKT-FRAME-290
8 x Aluminium Frame Bracket 80x80 angle 90mm - Part # BKT-FRAME-291
4 x Cast Aluminium Mooring Cleat 300mm - Part # CLEAT-1386
4 x Aluminium Cleat Bracket 80x80 angle 160mm - Part # BKT-CLEAT-1513
8 x 1/2" x 5" inch HEX HD BOLT 304 Stainless steel - Part # BOLT-2177
8 x 1/2" NYLOC HEX NUT 304 Stainless steel - Part # NUT-1276
16 x 1/2" x 1" FLAT Washer 304 Stainless steel - Part # WASHER-2178
40 x 3/8" x 2-1/2" inch UNC HEX HD BOLT 304 Stainless steel - Part # BOLT-3240
24 x 3/8" x 3" inch UNC HEX HD BOLT 304 304 Stainless steel - Part # BOLT-370
30 x 3/8" x 3-1/2" inch UNC HEX HD BOLT 304 Stainless steel - Part # BOLT-737
94 x 3/8" NYLOC Nut 304 Stainless steel - Part # NUT-371
172 x 3/8" X 1" ROUND FLAT Washer 304 Stainless steel - Part # WASHER-372
16 x 3/8" X 1-1/2" ROUND FLAT Washer Stainless steel - Part # WASHER-296
10 x White PVC Buffer / Fender large "D" Section 80mm - Part # BUFFER-373
3 x Aluminum 60 x 3mm flat bar slide in suit large "D" Section buffer - Part # AL-527
(2 x 2400mm long (sides) and 1 x 4400mm long (front edge)
35 x 14G x 75mm Hex head Stainless steel buffer screws - Part # SCREW-731
110 x 14G x 75mm Bugle batten head Stainless steel decking screws - Part # SCREW-1140
1 x Tube anti seize compound (apply to Stainless steels bolt threads - Part # ANTI-792
2 x Litres Decking oil

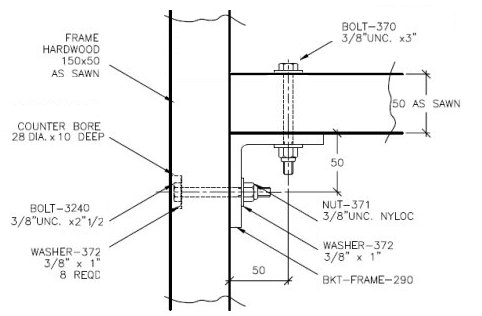

Frame Bracket




Pontoon 4.5 x 2.5 mtr Timber Frame

A4-2719 - Pontoon 4.5 mtr x 2.45 Timber Frame and Deck		 1200 Litre Flotation Module

A4-0190 - 1200 Litre # FLO1200-190
Frame Assembly detail

A4-0736 - Frame Assembly detail		 Ramp Bracket Support

A4-0826 - Ramp Bracket Support Detail
Float and Deck Assembly Timber

A4-0730 - Float and Deck Assembly detail		 Install Cleat Detail Timber Frame

a4-1515 - 300mm Cleat installation tiber frame
Marine Fender D Section

 Marine Fender D Section

A4-0759 - Large D Buffer Detail
Float Bracket Assembly

A4-0732 - Float Bracket Assembly Detail
pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557
Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links 		pontoons, marinas, jetties, docks, barges


What is the Pontoon 2719?
The Pontoon 2719 is a residential floating pontoon measuring 4.5 metres long by 2.55 metres wide. It is designed for waterfront homes, private jetties, recreational boating and residential marina applications.

How much flotation does the Pontoon 2719 provide?
The pontoon is supported by four FLO1200 polyethylene flotation modules, providing a total flotation capacity of approximately 4,800 litres for excellent stability and buoyancy.

Can I build the Pontoon 2719 myself?
Yes. The Pontoon 2719 is available as a complete DIY pontoon kit with detailed engineering drawings and assembly information. It can also be supplied fully assembled from our factory.

What materials are used in the Pontoon 2719?
The pontoon uses UV-stabilised polyethylene floats, F27 kiln-dried hardwood framing, F27 hardwood decking, marine-grade aluminium brackets and 304 stainless steel fasteners for long-term durability in marine environments.

What timber is used in the pontoon frame?
The standard design uses F27 kiln-dried 150mm x 50mm hardwood structural framing combined with 35mm hardwood decking boards for strength and durability.

Is the Pontoon 2719 Australian made?
Yes. The flotation modules and pontoon hardware are Australian made and manufactured by Marine Dock Systems using high-quality materials designed for Australian marine conditions.

Can the decking be installed in different directions?
Yes. The Pontoon 2719 can be configured with decking running either lengthways or across the pontoon, depending on customer preference and project requirements.

What is included in the pontoon kit?
The kit includes flotation modules, aluminium mounting brackets, cleat brackets, mooring cleats, stainless steel fasteners, marine buffers and detailed construction drawings. Timber can be supplied separately or sourced locally.

Does the pontoon include mooring cleats?
Yes. The standard Pontoon 2719 package includes four 300mm cast aluminium mooring cleats for securing boats and watercraft safely alongside the pontoon.

What type of marine buffer is included?
The pontoon includes large white PVC D-section marine buffers fitted to three sides to help protect both the pontoon and vessels during berthing.

What applications is the Pontoon 2719 suitable for?
The Pontoon 2719 is ideal for residential waterfront properties, private jetties, fishing platforms, swimming platforms, boat moorings, canal homes and recreational marine facilities.

Can extra cleats or buffers be added?
Yes. Additional mooring cleats, fenders, buffers and accessories can be supplied to suit individual project requirements.

What hardware is supplied with the kit?
The kit includes marine-grade aluminium brackets, stainless steel bolts, nuts, washers, decking screws, buffer fixings and anti-seize compound for installation.

Can the pontoon be delivered Australia wide?
Yes. Marine Dock Systems can arrange delivery throughout Australia or customers can organise their own transport if preferred.

Why choose the Pontoon 2719?
The Pontoon 2719 combines proven Australian-made flotation technology, heavy-duty hardwood construction, marine-grade hardware and flexible DIY or fully assembled options, making it a reliable long-term floating dock solution.
