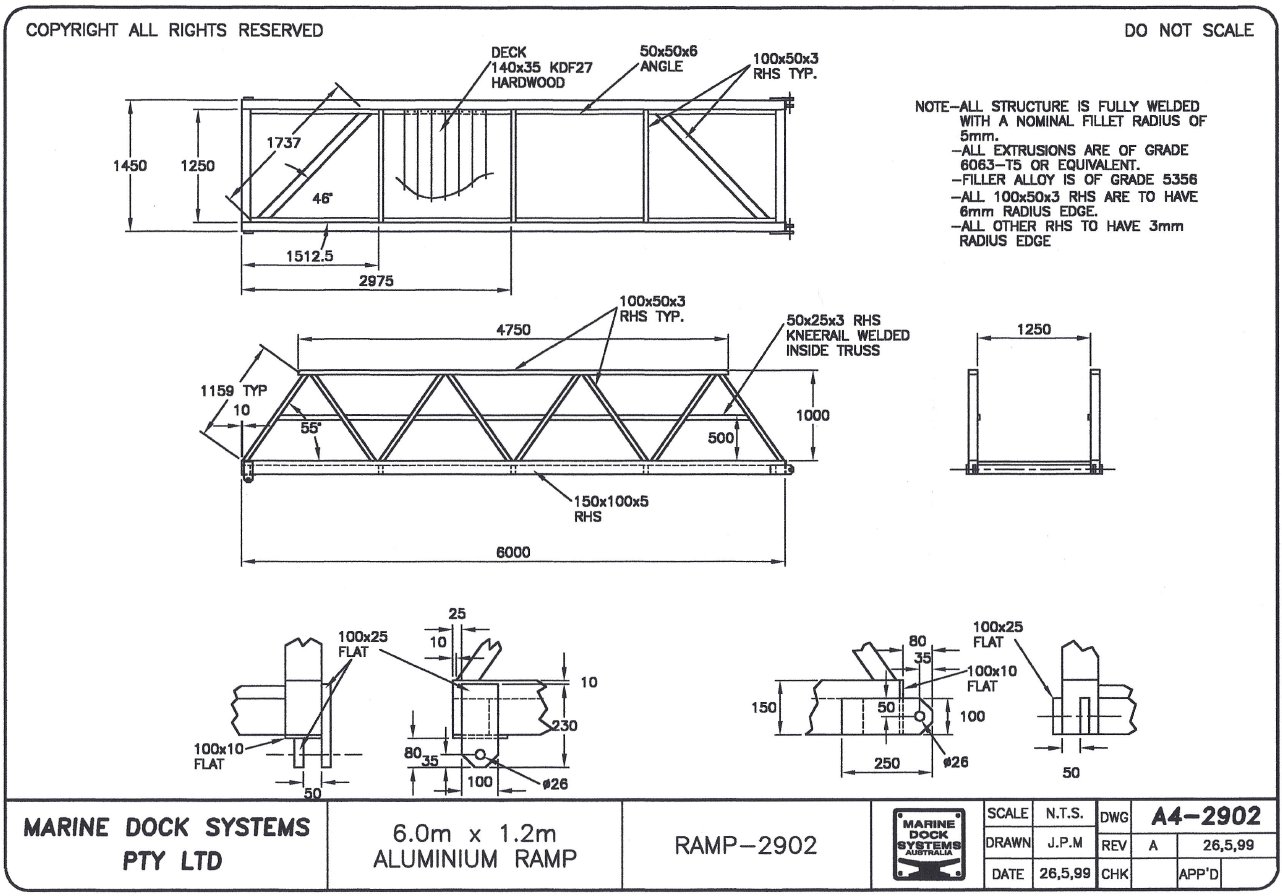

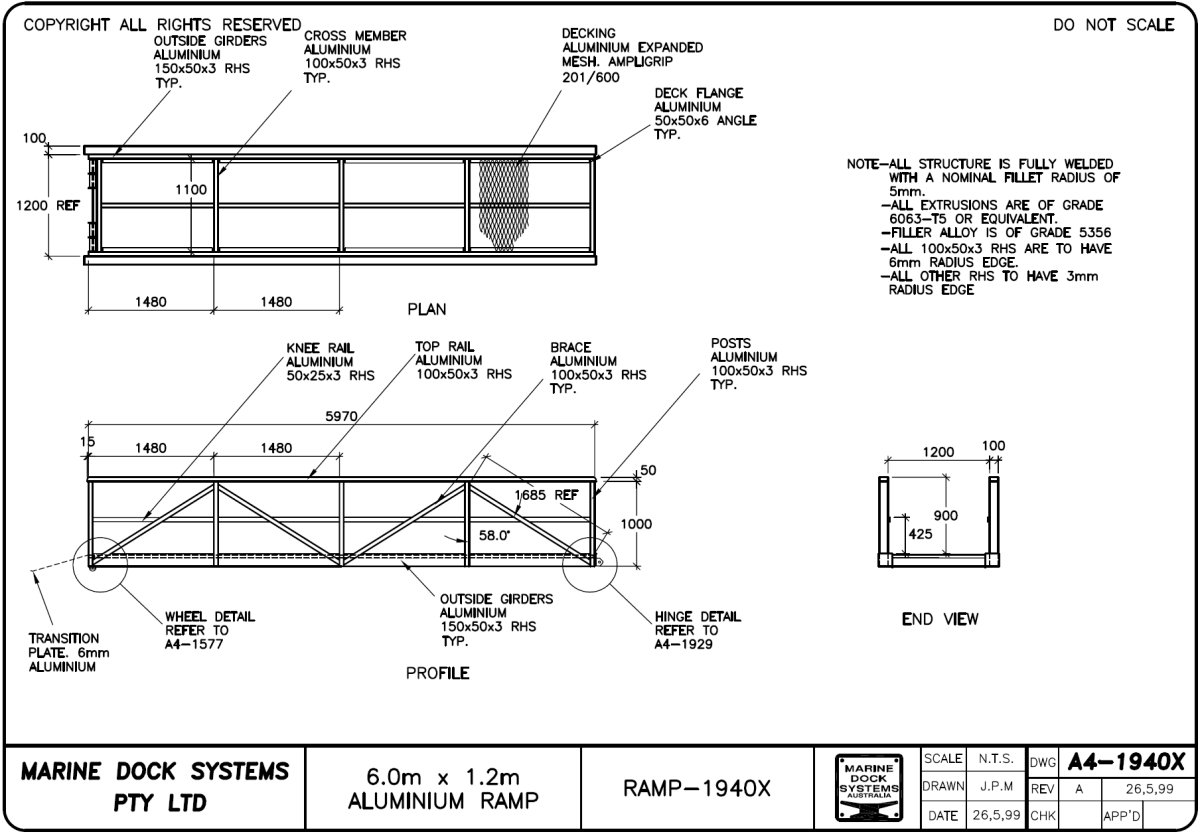

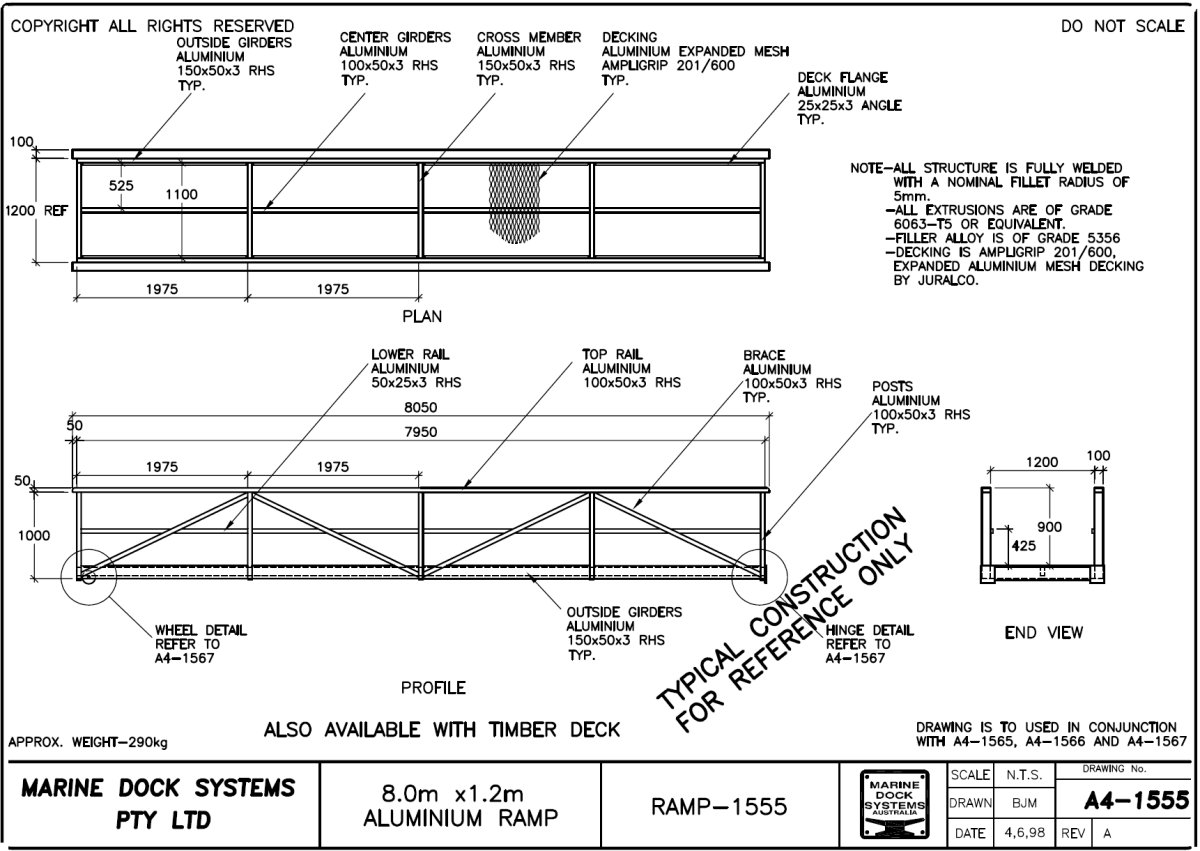

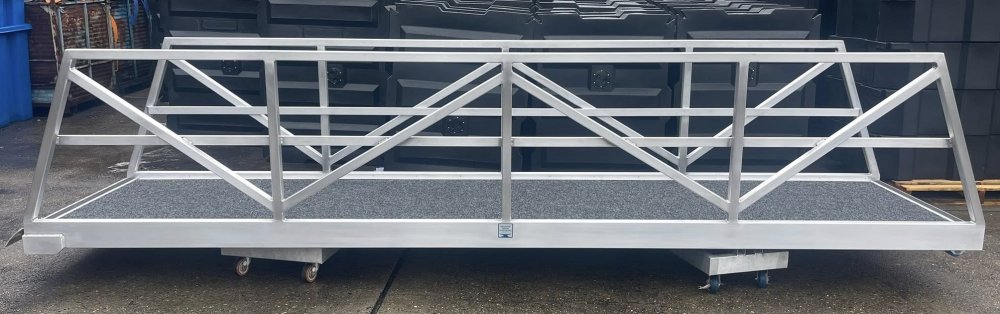

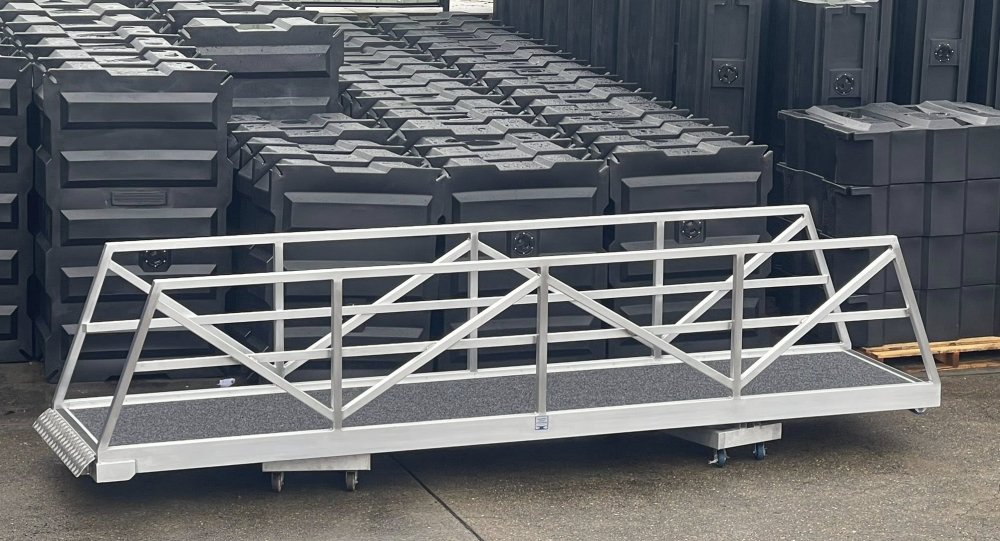

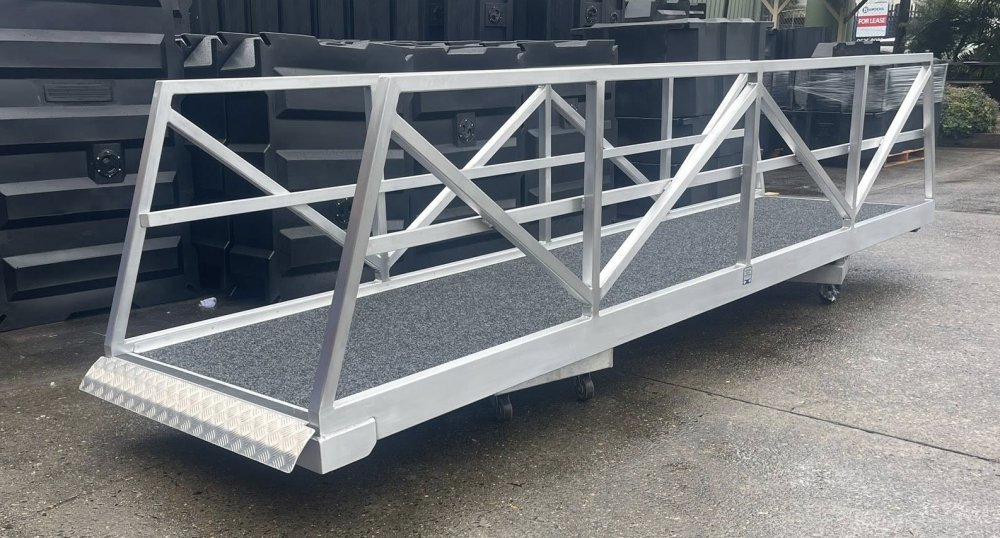

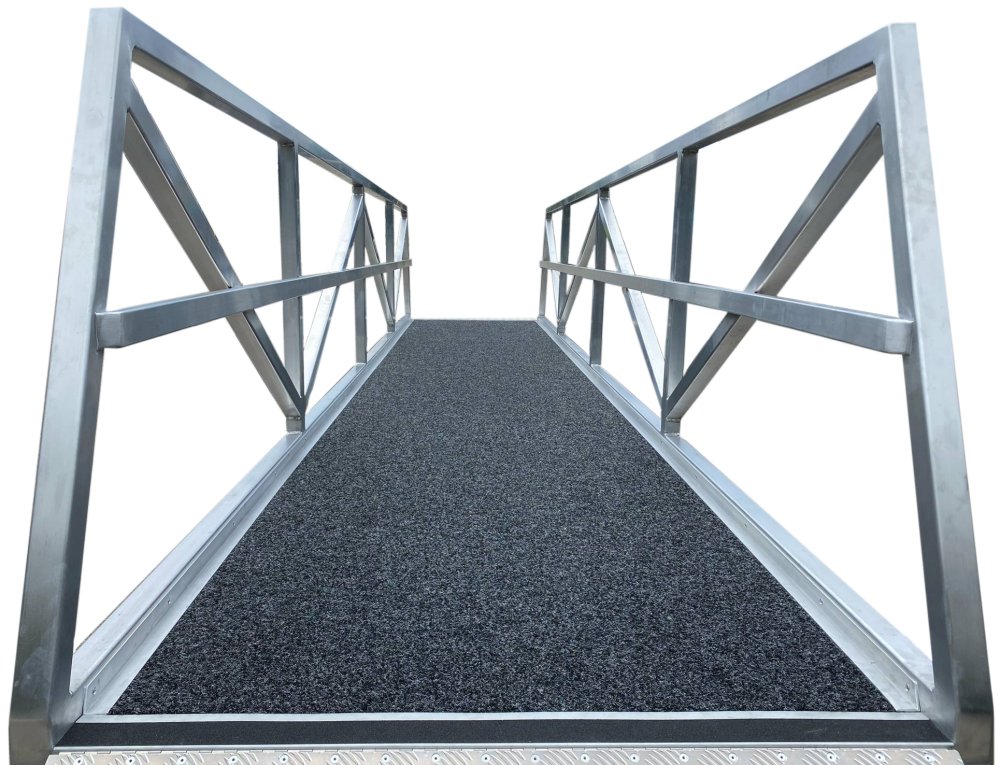

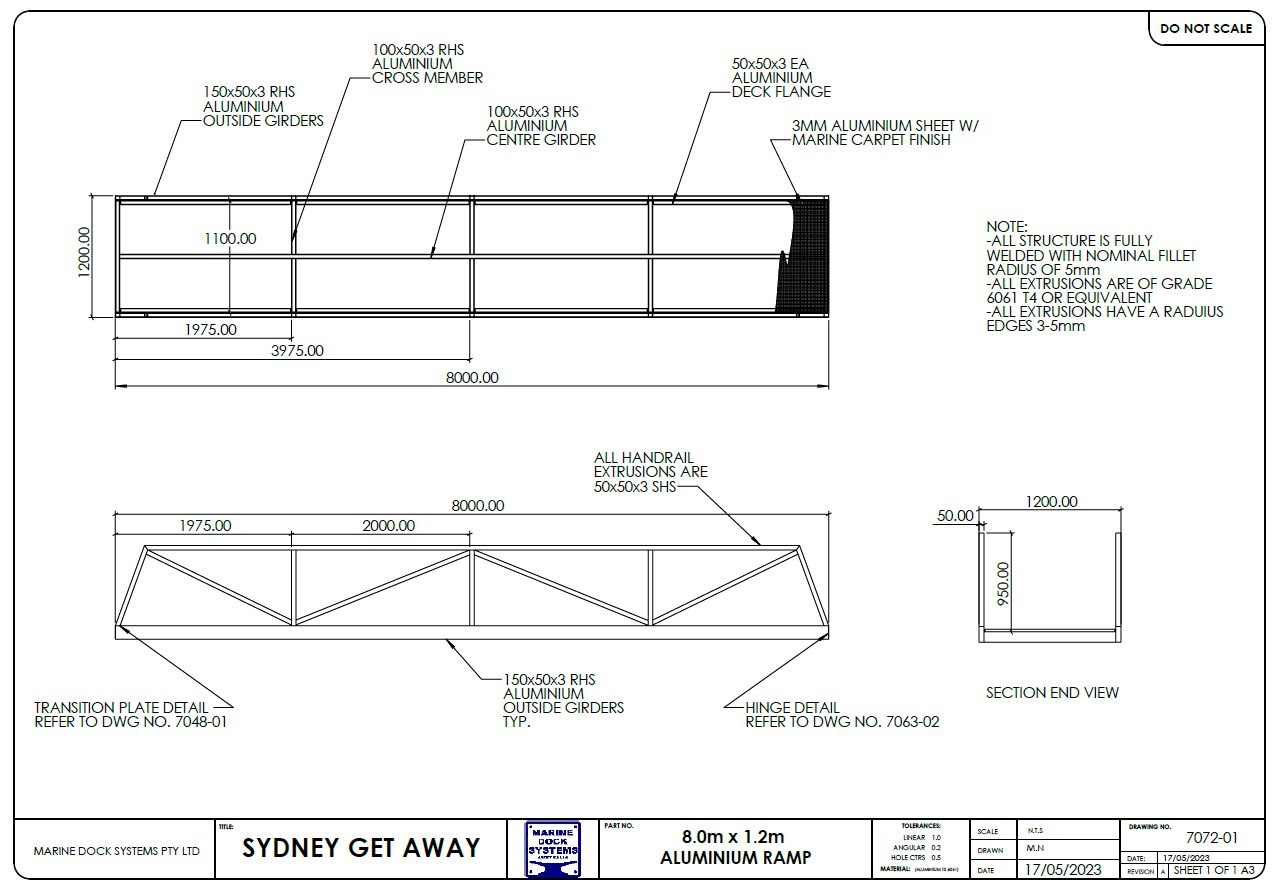

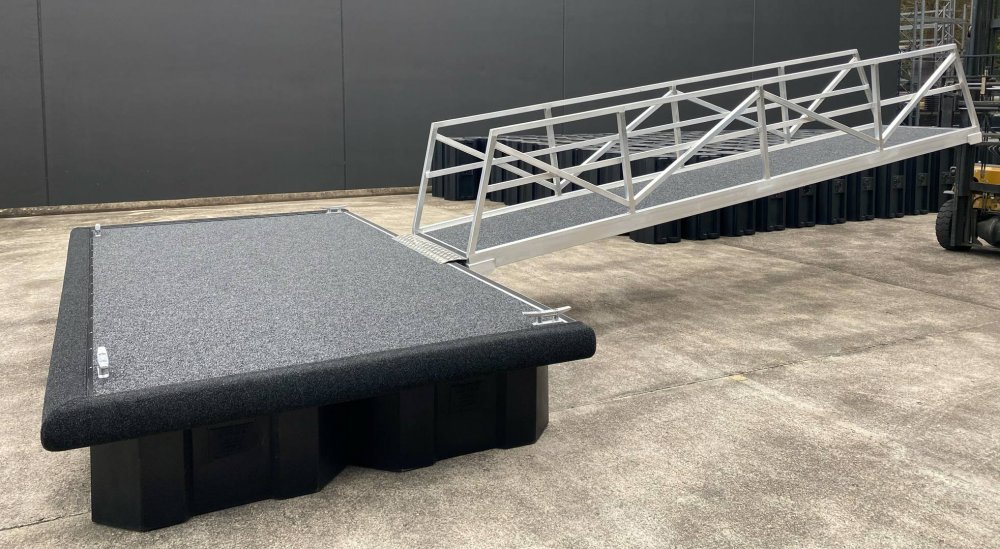

MARINE DOCK SYSTEMS 45 Wellington Street Riverstone N.S.W 2765 Australia Ph: +61 2 9627 5577 26 Corbould Rd Coolum Beach Qld 4573 Australia Ph: +61 7 5324 1557 Home    Email    Enquiry    Links RAMPS and GANGWAYS. Marine Dock Systems can design and manufacture your ramp or gangway for your floating pontoon or marina. Fully welded aluminium frames, can be decked with aluminium, marine carpet, timber or expanded aluminium mesh. Floats Enquiry WARRAGAMBA DAM Moveable ramp Sydney Catchment Authority 6 mtr x 1.2 mtr Mini mesh decking Mini mesh decking no handrails 150 x 50 RHS Aluminium main beams Fiberglass mini mesh decking All stainless steel and aluminium hardware. Fully welded aluminium gangway with fiberglass mini mesh, great for sea grass also has very good anti slip properties. 6 x 1.2 Mtr Drawing with handrails 6 x 1.2 Mtr with handrails Tech Drawing #7008 8 x 1.2 Mtr Drawing with handrails 8 x 1.2 Mtr with handrails Tech Drawing #7005 6 mtr x 1.2 mtr alloy plate decking Alloy plate decking with marine carpet no handrails 150 x 50 RHS Aluminium main beams Alloy plate decking with marine carpet All stainless steel and aluminium hardware. Fully welded aluminium gangway with aluminium plate decking finished with marine carpet, looks great and feels good under foot. 6 mtr x 1.2 mtr alloy plate decking Alloy plate decking with marine carpet with handrails 150 x 50 RHS Aluminium main beams Trussed 50mm handrails both sides Alloy plate decking with marine carpet All stainless steel and aluminium hardware. Fully welded aluminium gangway with aluminium plate decking finished with mrine carpet, looks great and feels good under foot. This one fitted with extras. Kayak storage racks and self closing security gate. Standard Domestic Ramp 6 mtr x 1.2 mtr Part # RAMP-0527 F27 kiln dried 150 x 50 Hardwood frame F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. Including aluminium hinges both ends. The hardwood timber we normally use is F27 Queensland Blackbutt, kiln dried with penciled edeges. Available in stages Build it yourself kit Hinges and hardware only (no timber) More info and material list Fully Built A4-0527d Timber ramp 6 mtr x 1.2 # 7020 Hinge detail shore and pontoon end # 7019 Ramp hinge plate detail< Aluminium hinge bracket< Aluminium hinge ramp plate detail< Superseeded drawings A4-2949 - Shore End Hinge Detail A4-2724 - Ramp Hinge Detail Stainless Aluminium Domestic Ramp 6 mtr x 1.2 mtr Part # RAMP-2577 200 x 50 RHS Aluminium F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. Including aluminium / stainless hinges. Available in stages Build it yourself Hinges and hardware only (no timber) or Fully Built Fully welded aluminium frame decked with hardwood timber, Queensland Blackbut, it is kiln dried and has pencilled edges for a nice walking surface. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end. a4-2577 Aluminium Ramp 6 mtr x 1.2 mtr Trussed Aluminium Ramp 6 mtr x 1.2 mtr Part # RAMP-1940 150 x 50 RHS Aluminium mains trussed F27 kiln dried 35mm Hardwooddecking All stainless steel and aluminium hardware. Including aluminium / stainless hinges. Fully welded trussed aluminium gangway with timber decking. Available in stages Frame, Hinges and hardware only (no timber) Build it yourself kit inc timber Fully Built a4-1940 - Trussed alloy timber ramp - 6mtr X 1.2mtr a4-1929 - Ramp Hinge Detail / Trussed alloy timber decking. a4-1577 - Wheel Detail Trussed alloy timber ramp Trussed Aluminium Sea Grass Ramp 6 mtr x 1.2 mtr Part # RAMP-1940X 150 x 50 RHS Aluminium mains trussed Aluminium mesh decking All stainless steel and aluminium hardware. Including aluminium / stainless hinges. Engineered to withstand rough conditions. Can be supplied with nylon rollers or hinge on the pontoon end. a4-1940X Trussed Aluminium - 6mtr X 1.2mtr Residential Sea Grass Ramp 6 mtr x 1.2 mtr Part # RAMP-1864 200 x 50 RHS Aluminium main beams Expanded aluminium mesh decking All stainless steel and aluminium hardware. Fully welded aluminium gangway with expanded aluminium mesh, great for sea grass also has very good anti slip properties. Ramp 1864 with hand rail one side Many other sizes available CLICK ON IMAGES FOR ENLARGEMENTS 9m x 1.4m Trussed alloy timber ramp A4-0719 - 9m x 1.4m Trussed alloy timber ramp 8.5m x 1.25m Trussed alloy timber ram A4-1316 8.5m x 1.25m Trussed alloy timber ramp Seagrass jetty section 6m x 1.2m a4-1076 - Seagrass jetty section 6m x 1.2m Floating Ramp 6 x 1.25 mtr A4-3218 - Floating Ramp 6 x 1.25 mtr - 1 x 1200 litre float 8m x 1.4m Trussed alloy mesh ramp a4-1555 8m x 1.4m Trussed alloy mesh ramp Wheel Detail pontoon end. A4-1577 - Wheel Detail Trussed alloy timber ramp 4m x 1.5m Trussed alloy timber ramp A4-1575 4m x 1.5m Trussed alloy timber ramp 8m x 1.2m Trussed alloy mesh ramp A4-1930x 8m x 1.2m Trussed alloy mesh ramp 6 x 1.4m with transition plate A4-2184 6 x 1.4m ALLOY TIMBER RAMP HINGE-ROLL 6 x 1.4m with step A4-2982 6M X 1.4M ALLOY RAMP-NO HANDRAIL 6 x 1.4m Seagrass A4-2982x-SEAGRASS RAMP Floating Aluminium Walkway Ramp A4-2900 - 6mtr x 0.6 with 333 litre float attached Bracket to suit 900 wide ramp A4-2721 - Bracket to suit - 20 mtr x 0.9 wide 16 mtr x 0.9 wide Gangway A4-2720 - Aluminium Ramp 16 mtr x 0.9 wide Cambered Aluminium Ramp 6mtr x 1.2 a4-2821 - Cambered Aluminium Ramp 6mtr x 1.2 Trussed 12 x 0.9mtr A4-2816 - Aluminium Ramp 12mtr x 0.9 Industrial Aluminium Walkway Ramp A4-2817-2 - Aluminium Walkway Ramp - 2 x 650 Litr Floating Walkway - 3 x 650 Litre A4-2817 - Aluminium Walkway - 3 x 650 Litre 6mtr x 1.2 with trussed handrails A4-2902 - Aluminium Ramp 6mtr x 1.2 with trussed handrails Bracket suit ramp 2902 A4-2903 - Ramp Hinge Bracket suit ramp 2902 a4-2907 - Portable Folding Aluminium Ramp 3.5 mtrs x 0.6 a4-2910 - Boat Ramp Pontoon 20 mtrs x 2.15 wide a4-2943 - Aluminium Timber Ramp 6mtr x 1.2 with optional handrail a4-2949 - Ramp Hinge Detail suit Tiber Ramp 1.2 mtrs wide a4-2954 - Cambered Aluminium Timber Ramp 5.1 mtr x 1.3 with Trussed handrails a4-2957 - Ramp Hinge Detail suit Alloy Ramp 1.8 mtrs wide a4-2961 - Ramp Aluminium Framed Timber 6mtr x 1.2 with transition plate a4-2962 - Ramp Trussed Aluminium Framed Timber 9 mtr x 1.2 with transition plate a4-2970 - Bridge Trussed Aluminium Framed Timber Deck 12 mtr x 2.25 a4-2971 - Bridge Abutment Details a4-2982 - Ramp Aluminium Framed Timber Decking 6mtr x 1.4 with step hinged both ends a4-2982x - Ramp Aluminium Framed Expanded Alloy Decking 6mtr x 1.4 with step hinged both ends a4-2983 - Ramp Aluminium Hinge Detail suit 1.4 wide a4-2983-2 - Ramp Aluminium Hinge Detail suit 1.4 wide a4-3145 - Aluminium Trussed Ramp 4.3 mtrs x 0.9 wide a4-3159 - Aluminium Trussed Ramp 2.5 mtrs x 1.2 wide Transition Plate MARINE DOCK SYSTEMS 45 Wellington Street Riverstone N.S.W 2765 Australia Ph: +61 2 9627 5577 26 Corbould Rd Coolum Beach Qld 4573 Australia Ph: +61 7 5324 1557 Home    Email    Enquiry    Links
