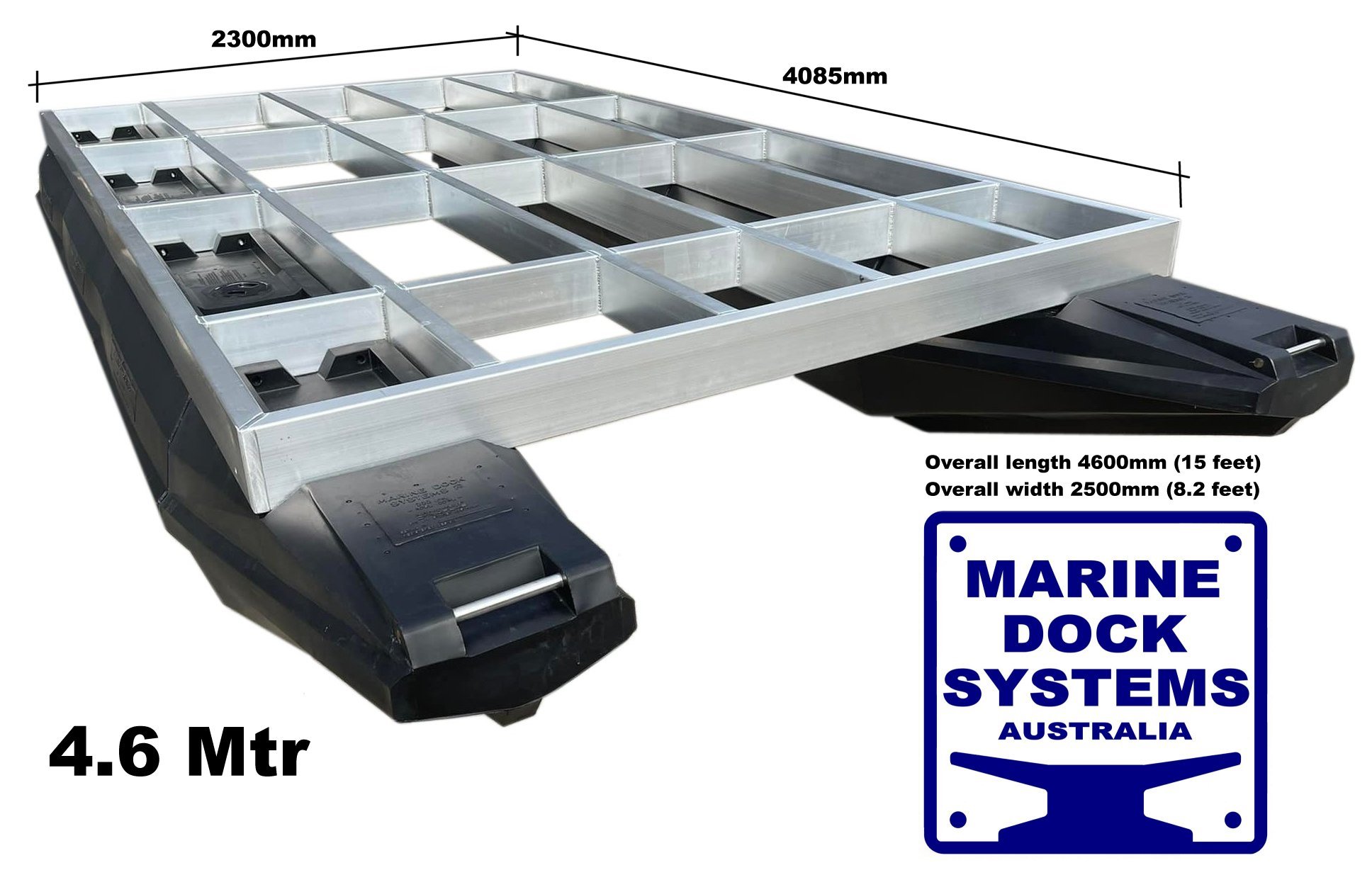

Pontoon Boat Base 4600
4.6 Mtr Pontoon Base

Pontoon Boat Base 5700
5.7 Mtr Pontoon Base

Pontoon Boat Base 6900
6.9 Mtr Pontoon Base





Facebook - Marine Dock Systems

YouTube - Marine Dock Systems


Boat Menu
3.4 Mtr Boats 3.4 Mtr Boats
4.6 Mtr Boats 4.6 Mtr Boats
5.7 Mtr Boats 5.7 Mtr Boats
6.9 Mtr Boats 6.9 Mtr Boats
Boat Menu Boat Menu
pontoons, marinas, jetties, docks, barges MARINE DOCK SYSTEMS
45 Wellington Street Riverstone N.S.W 2765 Australia
Ph: +61 2 9627 5577
26 Corbould Rd Coolum Beach Qld 4573 Australia
Ph: +61 7 5324 1557

Marinas Home    Marinas Email    Marinas Enquiry   Marinas Links
pontoons, marinas, jetties, docks, barges
Pontoon Boats, House Boats and Moving Craft
Marine Dock Systems has designed many moving craft using our 333 Litre floats and nose cones. The 333 Litre floats support 150kgs each. Moulded in one piece from tough, high stress crack-resistant, thermoplastic polyethylene resin. In built mounting lugs allow direct connection of the modules to the frame work system. Floats can be used for drinking water or waste. Contact us and let us know what size boat you are after with accessories. Such as motor brackets, hand rails, carpet, cleats, steering wheel console or even a roof. Floats are also available separately
We have made boats used as BBQ Pontoon Boats, Passanger Transfer, Work Barges, Work Platforms, Docks, Moving Craft, Mooring Lifts, Transport Barges, Oyster Barge, Croc Boat, Cattle Transport, ATV Transport, Tiny house boats and Fishing!

          Float PDF Price List              YouTube Channel

Float





New! Pontoon boat lounges Click here!

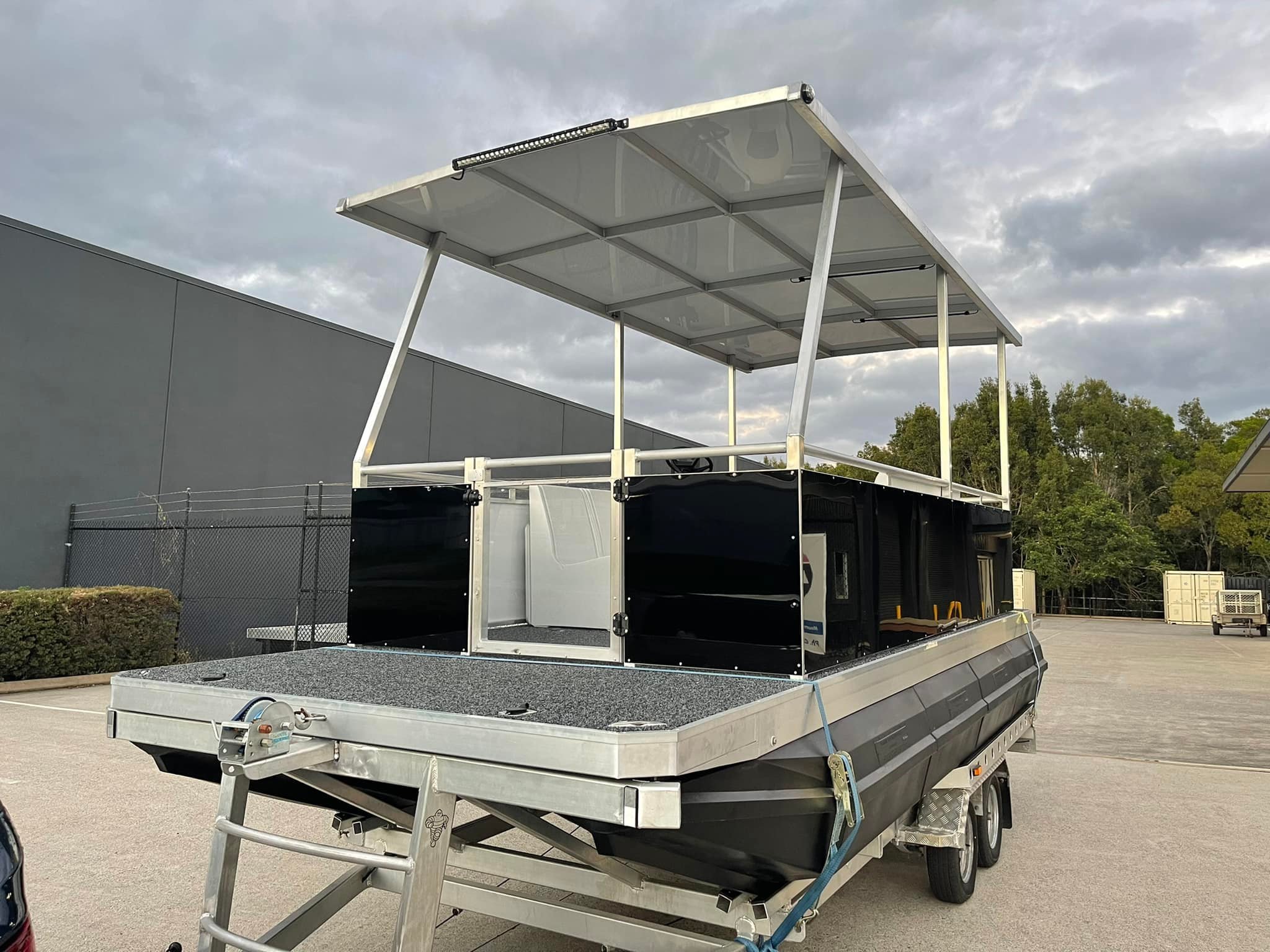

PONTOON BOAT
3.4 Mrs Long
2.5mtr wide
Available in stages
Floats only
Frame and Floats
Full custom build

- More info on this size
pontoon boat click here!

Float Pontoon Boat Price List
This custom boat build
Floats 134kg
Frame 80kg
Decking 67kg
Total weight 281 kg
Max Load 453kg
Add centre row of floats
Max Load 750kg
3.4 Pontoon Boat
3.4 Pontoon Boat
3.4 Pontoon Boat
3.4 Pontoon Boat

PONTOON BOAT

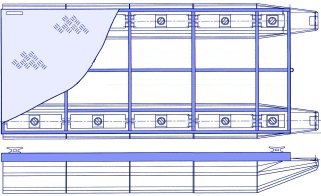

4.6 Mrs Long x 2.5mtr wide
Available in stages
8 standard options
or full custom build




- More info on this size
pontoon boat click here!


Float Pontoon Boat Price List

This custom boat build
Floats 184 kg
Frame 110 kg
Decking 93 kg
Motor bracket 17kg
6 HP Murcury outboard 26kg
Handrails 22kg
Total weight 452 kg
Max Load 632kg
Add centre row of floats Max Load 1080kg
- click here! for more designs this size

PONTOON BOAT
5.7 Mrs Long
2.5mtr wide

Available in many stages
Floats only
Frame and Floats
Decking / Carpet
Motor bracket
Rear steps
Nose extension
Handrails with gates
Full hardtop roof
etc. etc.
Full custom build





click here! for more designs this size


Shown here with handrails gates and outboard motor bracket. POA

Float Pontoon Boat Price List





PONTOON BOAT

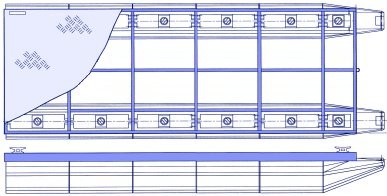

6.9 Mtrs Long
2.5 mtr wide
Available in stages
Floats only
Frame and Floats
Frame and 3 Rows of Floats
Full custom build

click here! for more designs this size




This custom boat
Max Load 720kg
Add centre row of floats Max Load 1470kg

Float Pontoon Boat Price List


PONTOON BOAT
6.9 Mrs Long
3.2mtr wide
Available in stages
Floats only
Frame and Floats
Full custom build
BOAT-0690-3200
Moving wide

7018-01 6.9 m x 3.2m wide with handrail
Floats 426 kg
Frame 216 kg
Total weight 642 kg
Max Load 2250kg
6.9 Pontoon Boat
6.9 Pontoon Boat
6.9 Pontoon Boat

Float Pontoon Boat Price List
This boat has three rows of floats for extra flotation. This boat can take 2250kg. as is. Consisting of 15 x 333 Litre Floatation modules and 3 x Nose cones Frame is made from 150 x 50 x 3mm aluminium RHS and is fully welded, 304 Stainless steel bolts have been used to attach the floats to the frame Frame platform size 2400mm wide x 6400 mm long. Total length including nose cones 6910mm.
MOVING CRAFT
8.1 Mrs Long
2.5mtr wide
Available in stages
Floats only
Frame and Floats
Full custom build


# 7021-01 - Work barge 8.1m x 2.5m wide with handrails
Floats 334 kg
Frame 260 kg
Total weight 586 kg
Max Load 1800 kg


Float Pontoon Boat Price List

MOVING CRAFT
8.1 Mrs Long
3.2mtr wide
Available in stages
Floats only
Frame and Floats
Full custom build





a4-0949 - Moving craft Frame detail 8.1m x 3.2m wide Extra wide
Floats 334 kg
Frame 275 kg
Total weight 609 kg
Max Load 1800 kg


Float Pontoon Boat Price List

MOVING CRAFT
3 Rows of floats
8.1 Mrs Long
3.2mtr wide

Available in stages
Floats only
Frame and Floats
Full custom build

Floats 501 kg
Frame 275 kg
Total weight 776 kg
Max Load 2700 kg


a4-0949 - Moving craft Frame detail 8.1m x 3.2m wide Extra wide

Four Rows of floats
Floats 800 kg
Frame 300 kg
3mm Ally Decking 210kg
Total weight 1310 kg
Max Load 3390 kg

Drawing 4 rows

Available in
Floats only
Frame and Floats
Full custom build
add 138kg Max Load 3250kg

Float Pontoon Boat Price List

House boats
9.2 x 4.5 mt
House boat frame and floats Floats 1000 kg
Frame 460 kg
Total weight 1460 kg
Max Load 6000 kg
Available in stages
Floats only
Frame and Floats
Full custom build


House boat base
10.3 x 3.5 mt
House boat frame and floats
Floats 850 kg
Frame 480kg
Total weight 1330 kg
Max Load 4500 kg
Available in stages
Floats only
Frame and Floats
Full custom build



House boat base
12.6 x 4.5 mt
House boat frame and floats
Floats 1350 kg
Frame 1200kg
Total weight 2550 kg
Max Load 7200 kg
Available in stages
Floats only
Frame and Floats
Full custom build


Pontoon Boat Furniture
Upholstered pontoon boat lounges. Our extra comfortable range includes Large straight lounge, meduim and small. Our pontoon seating is manufactured using polyethylene roto moulded bases which can handle extreme outdoor conditions, upholstered in heavy duty vynil. Lounges have lift up seats for storage, great for stowing away life jackets and more.
Click Here for details

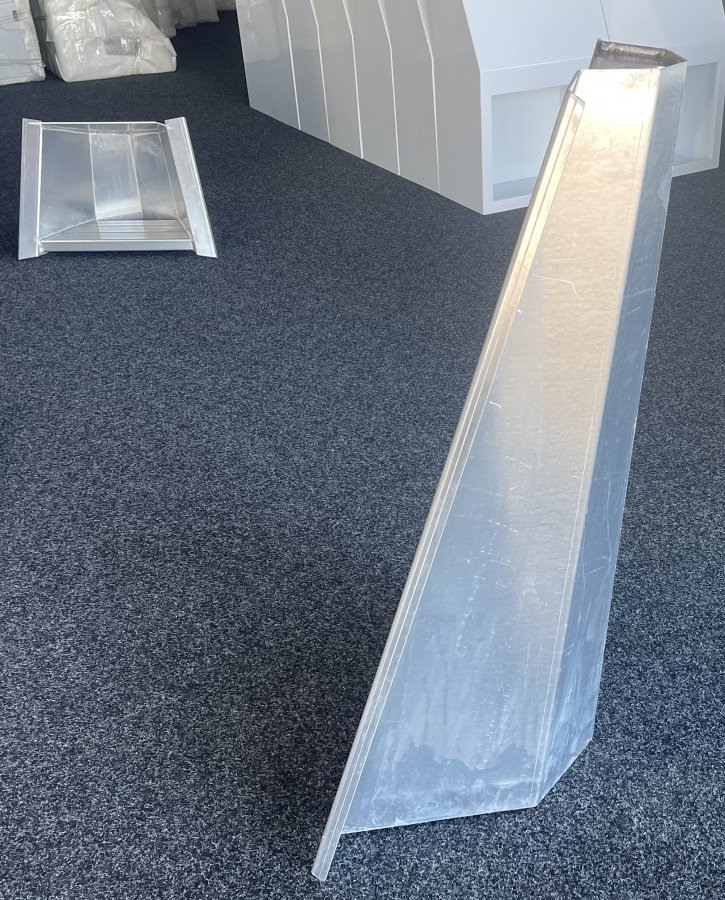

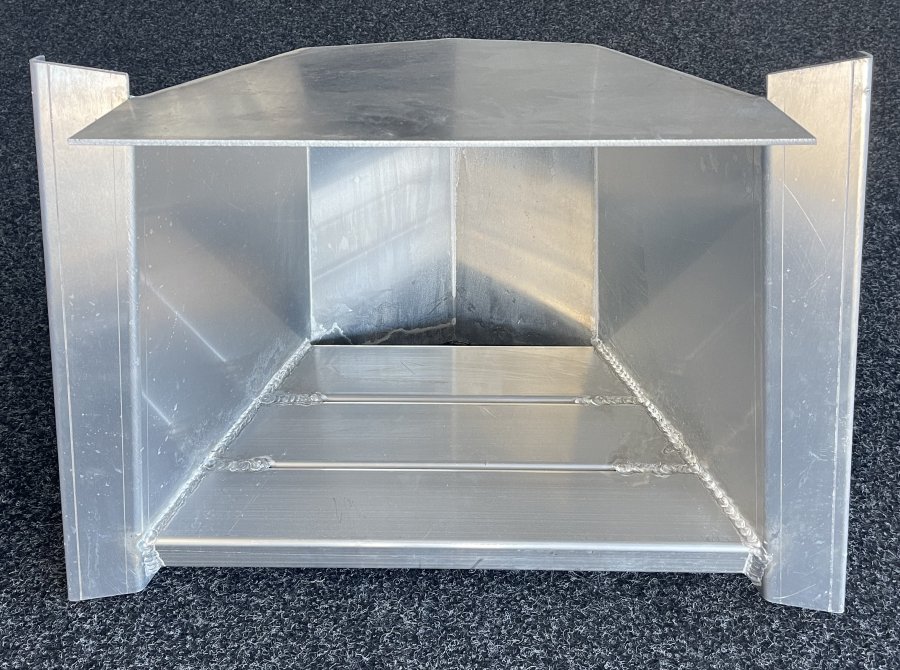

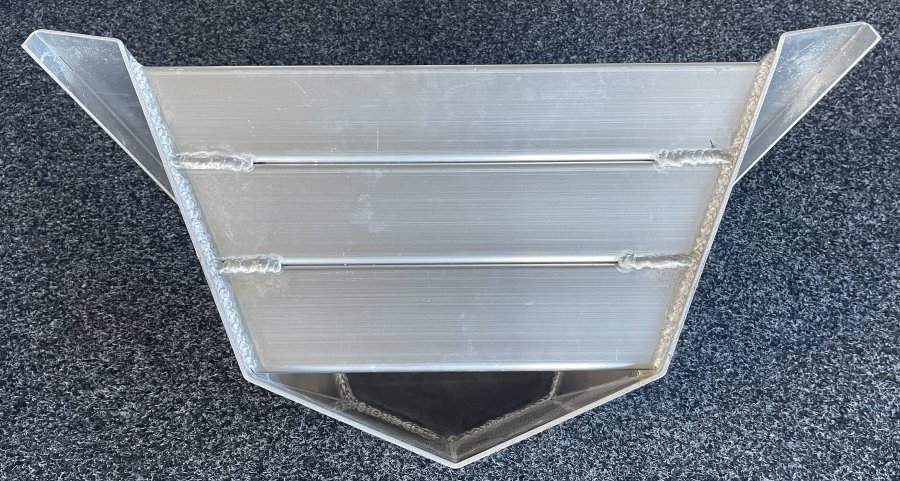

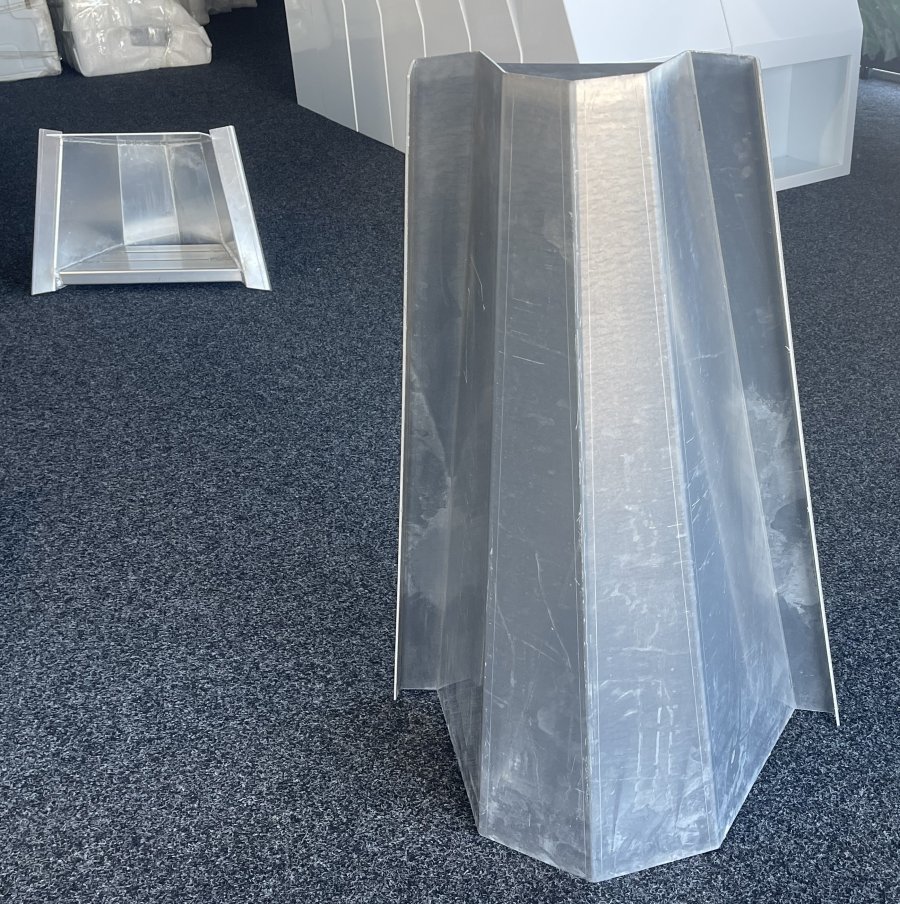

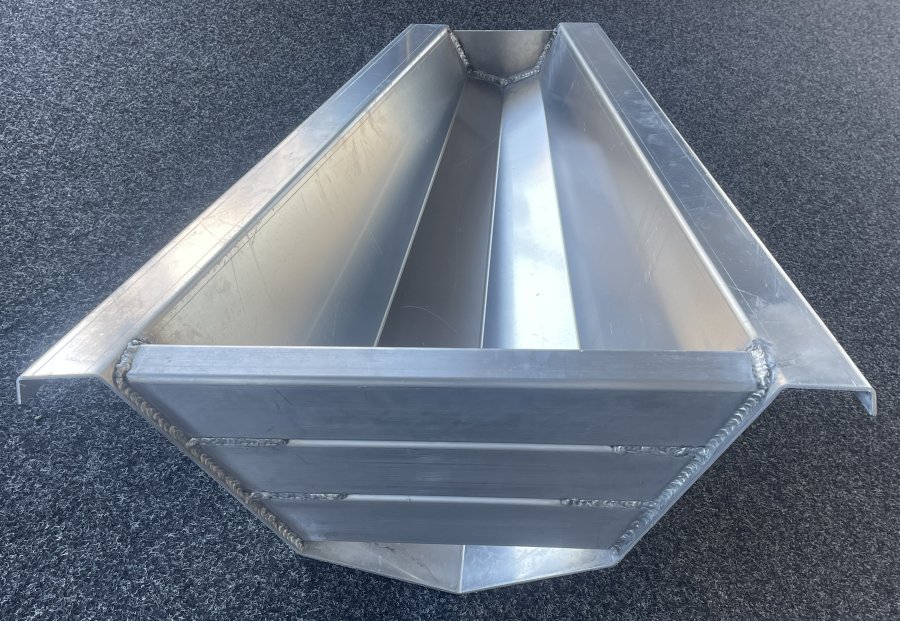

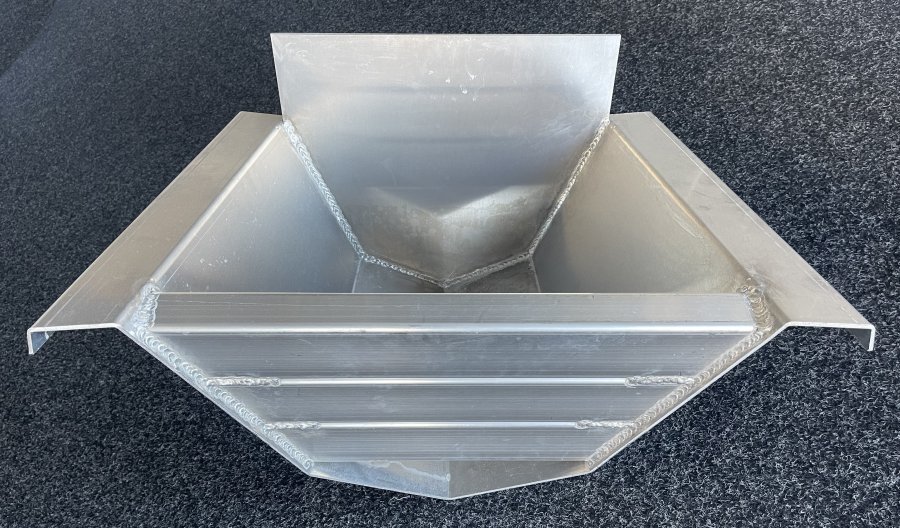

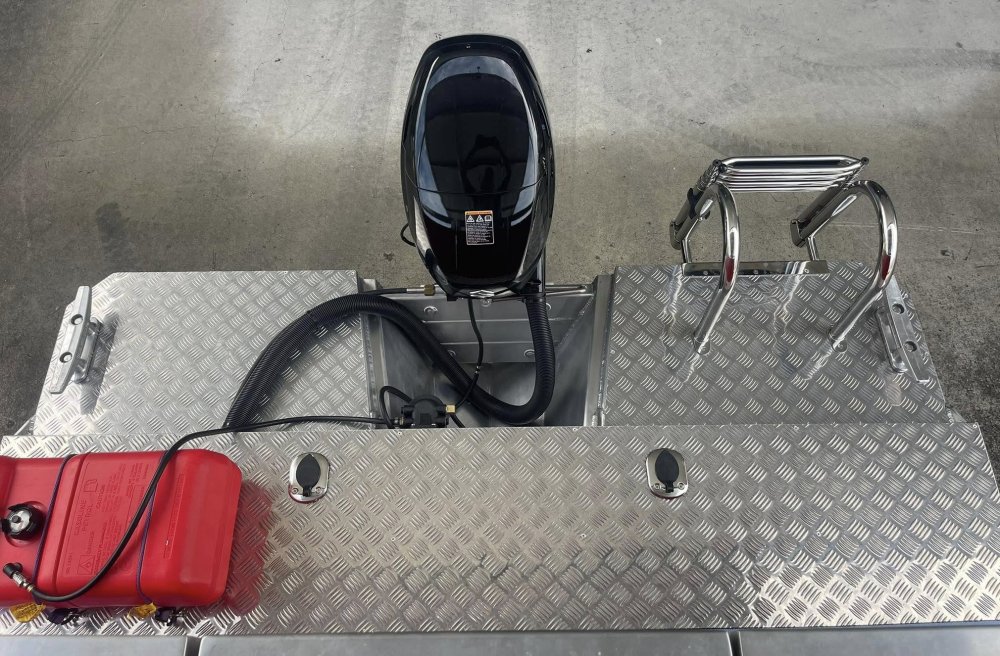

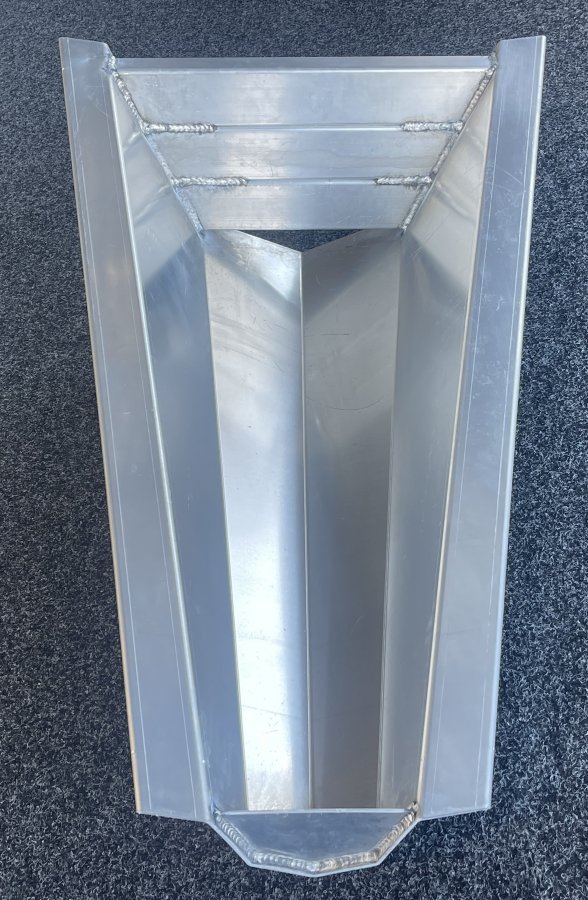

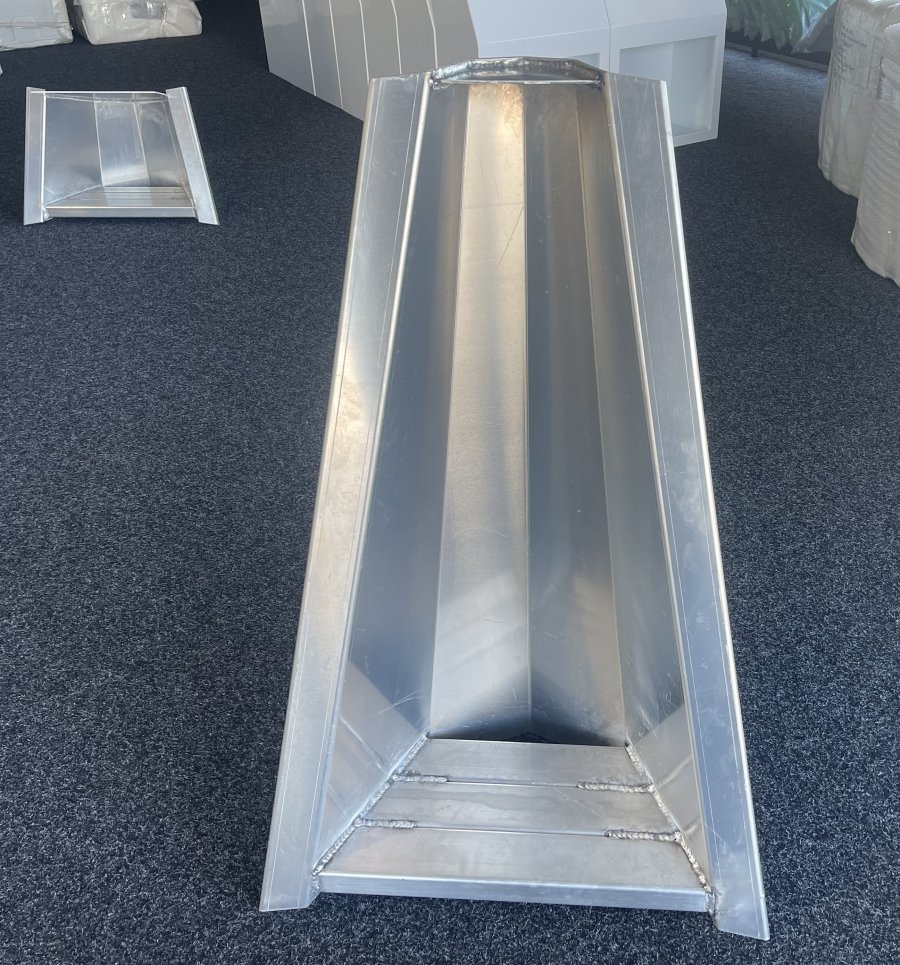

Outboard Motor Bracket

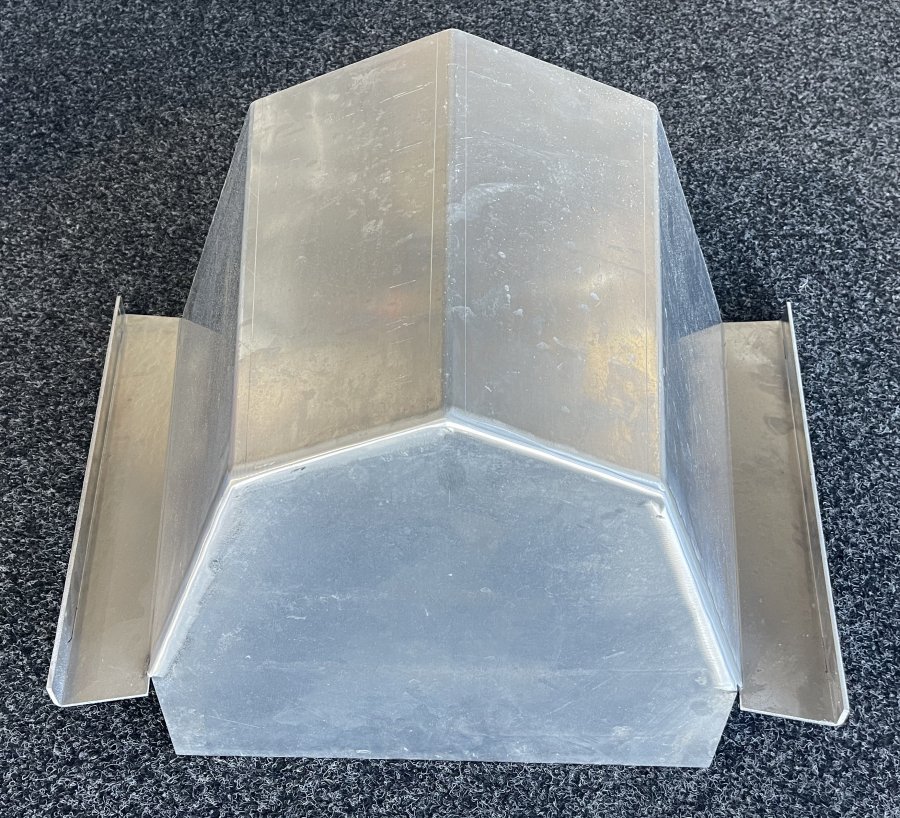

Standard


standard motor bracket

Motor bracket #7084
M/bracket fitting #7097
With side steps


motor bracket with side steps
motor bracket with step

Rear steps #7083

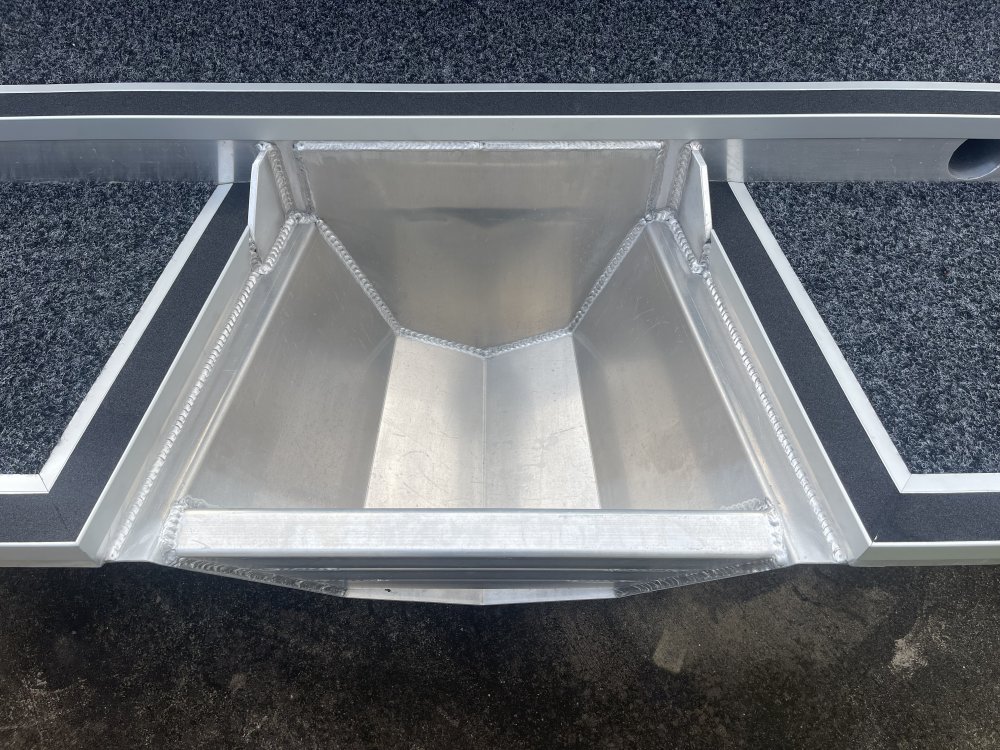

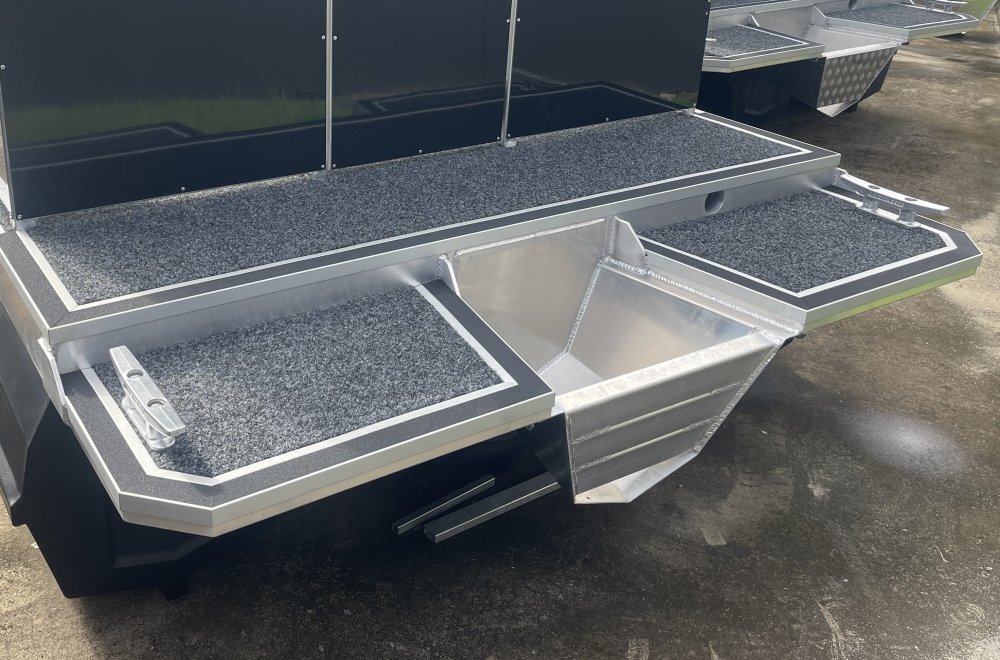

Built in


built in motor bracket
built in motor bracket

More pics. Click to enlarge

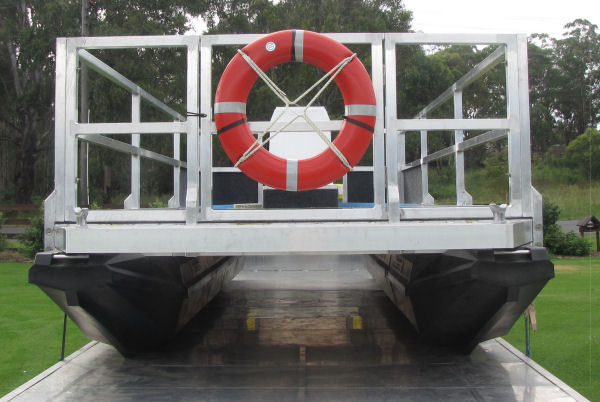

Party Boat
Click Here for Installation Page

Effluent Pontoon
Click Here for Installation Page

Boat Manufacturers
We are able to offer discounts for resellers and original equipment manufacturers. Here is a great are example of our customers boat build that were well welcomed in the Australian market place reducing American and overseas imports. We are able to back up our resellers with good discounts and product support. Floats and nose cone can be sold separately if replacement is ever required. Float also pack and ship well fitting 8 units to slightly oversized pallet. Please contact us for a freight quote to your area. Pick up welcome from our factory at Riverstone NSW or Cuolum QLD.
Pontoon - Day Boat

Timber Frame Boat
Timber framed pontoon boats are an option if you would like to build your own. No need for welding and is an inexpensive way to manufacture your party boat. Timber can bolt straight through the moulded holes in the float. We are happy if you use our drawings and or ides to build your own dream BBQ Boat or even a house boat. We do recommend a fully welded aluminium frame although timber finds its place in the right application. Floats are manufactured in Sydney Australia by Dynaplas



Industrial Boats
This pontoon boat was manufactured to service a fresh water dam. It is used to gain access to overflow screens for cleaning. With customers such as Sydney Water, SA Water, The Australian Submarine corporation, Australian Defense Force and many local Australian councils. These pontoons are made to last, we have been manufacturing these since the early 1980's and have already proved themselves time and time again.

Boat Pontoon Dock
This boat is used as a standard access pontoon when not in use. Supplied with hinge lugs on the side for a six meter ramp to be attached.

333 Litre floats can be used for small residential, swimming and pump pontoons. Here is a example of a great little pontoon one of our customers put together. Great work!

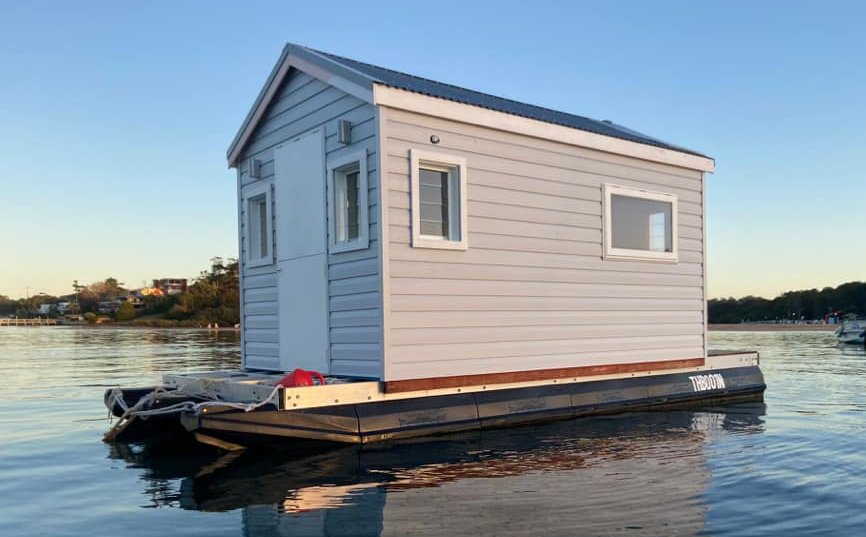

Shown here our Marine Dock Systems floats to make floating office and a great little house boat. Both of these were owner builders and used our polyethylene flotation modules.


Superceeded drawings
a4-0928 - Outboard Motor Bracket
- Drawing a4-0928c
